Special glass with a partial mirror effect
BEAMSPLITTER separates the incoming visible light into a reflected portion and a transmitted portion without absorption or loss of energy and light. This manipulation of light reflection and transmission opens up an interesting range of possible applications. In architecture and design BEAMSPLITTER can be used in displays, screens as well as in room partitions, glass fins etc.
As an option it can also be used in combination with LUXAR® anti reflective coating on the other glass surface to minimize double images in sensitive applications. BEAMSPLITTER comes in annealed form on either clear float or low iron glass in various thicknesses. It can also be laminated.
Usage As a basis for changing spatial images, information displays and autocues
Functionality Anti-reflective coating, which reflects and transmits incident light waves in certain proportions
Special feature Available in fine differentiations with regard to transmission and level of mirror
Technical specifications
BEAMSPLITTER |
70 / 30% |
50 / 50% |
---|---|---|
Light transmission |
70% |
50% |
Light reflection (coated side) |
30% |
50% |
Gallery
The basic glass with clear transparency and optimised intrinsic colour
EUROFLOAT forms the basis of most of our glass products. It is manufactured to the highest quality in our own float glass factories.
The glass is insensitive to weather conditions, acid-and alkali-resistant, does not absorb odours and is not subject to colour changes.
Aesthetics Distortion-free view; homogeneous smooth surface; depending on glass thickness, slight distinctive green colour
Dimensions Standard (strip size) 6000x3210 mm; extra length 9000x3210 mm; in thickness from 2 to 12 mm
Special feature Float is 100% recyclable
Technical specifications
Thickness |
3 mm |
4 mm |
5 mm |
6 mm |
8 mm |
10 mm |
12 mm |
---|---|---|---|---|---|---|---|
Light transmission |
91% |
90% |
90% |
90% |
89% |
89% |
88% |
Exterior light reflection |
8% |
8% |
8% |
8% |
8% |
8% |
8% |
Solar energy reflection |
8% |
8% |
8% |
8% |
7% |
7% |
7% |
Energy absorption |
5% |
7% |
9% |
10% |
13% |
16% |
18% |
Ultraviolet light admittance |
75% |
71% |
68% |
66% |
61% |
58% |
55% |
Total energy transmission g-value |
88% |
87% |
86% |
85% |
83% |
81% |
79% |
Gallery
Video

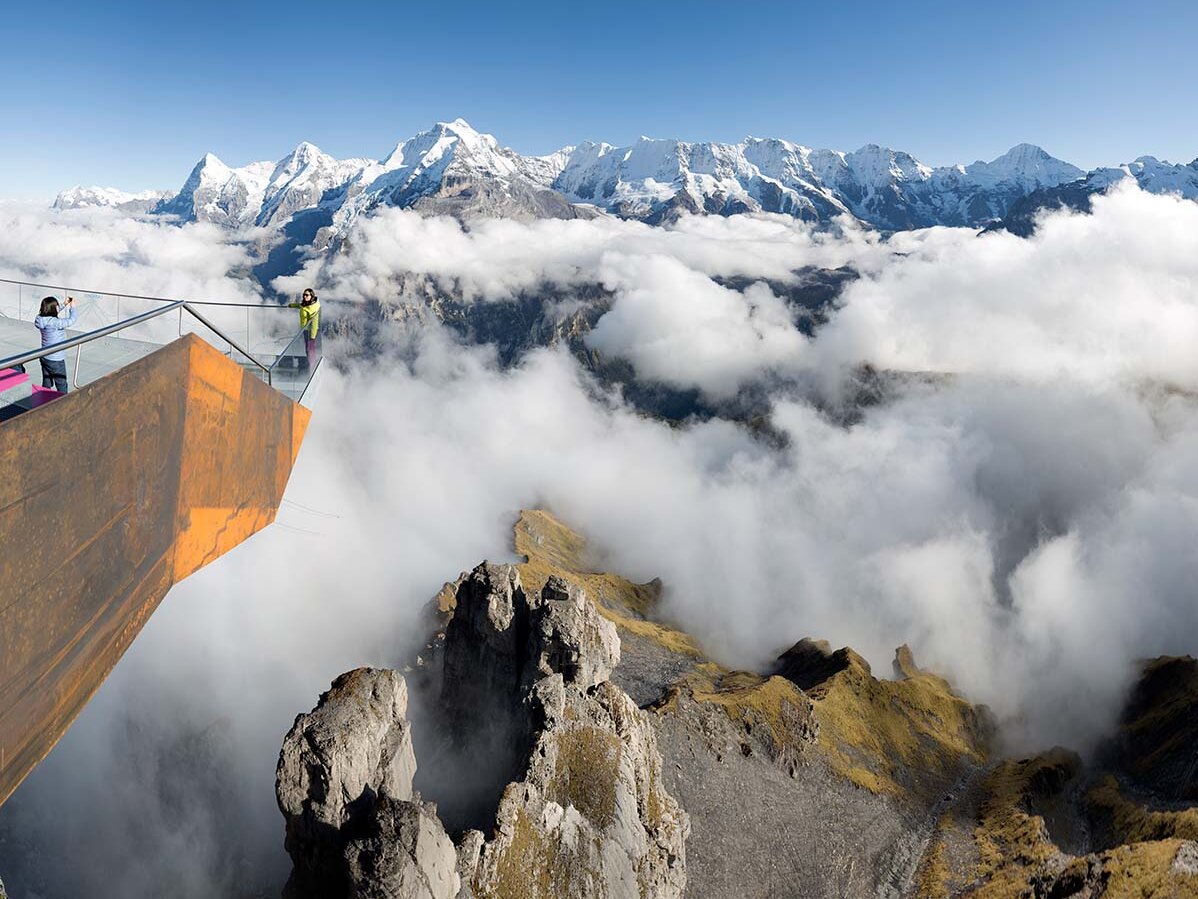

High-strength laminated glass with maximum active safety
EUROLAMEX laminated safety glass consists of two or more panes of glass with highly tear-resistant, viscoplastic intermediate layers of film. The structure and thickness of the elements are based on the requirements for the glass solution. By combining different types of glass and film layers, it is possible to achieve not only penetration, breakthrough, bullet and explosion resistance, but also safety properties such as crash and fall protection as well as accessibility. EUROLAMEX is available with transparent PVB film or matt film.
EUROLAMEX is resistant to light and ageing and binds glass splinters together in the event of breakage: It resembles a spider’s web with a narrower or wider mesh structure depending on the strength of the impact.
Application In compliance with maximum safety requirements; protection from penetration, crash, as well as break-ins, break-outs and breakthroughs; also suitable for accessible areas
Dimensions Made-to-measure up to max. 9000x3210 mm; glass thickness from 3 to 12 mm
Special features Light and ageing resistant; also UV-transparent
Technical specifications
Product |
Film type |
Ball drop test DIN EN 356 |
Pendulum impact classification DIN EN 12 600 |
Ball impact resistance DIN 18032-3 |
---|---|---|---|---|
EUROLAMEX 4.2 |
clear |
P2A |
Class 1 |
- |
EUROLAMEX 4.4 |
clear |
P2A |
Class 1 |
- |
EUROLAMEX 6.1 |
clear |
P1A |
Class 2 |
- |
EUROLAMEX 6.2 |
clear |
P2A |
Class 1 |
4.200 x 2.250 mm |
EUROLAMEX 6.4 |
clear |
P4A |
Class 1 |
- |
EUROLAMEX 8.1 |
clear |
- |
- |
4.200 x 2.250 mm |
EUROLAMEX 8.2 |
clear |
P2A |
Class 1 |
4.200 x 2.250 mm |
EUROLAMEX 8.4 |
clear |
P4A |
Class 1 |
- |
EUROLAMEX 8.6 |
clear |
P5A |
- |
- |
EUROLAMEX 12.8 |
clear |
P6B |
- |
- |
EUROLAMEX 6.2 |
matt |
P2A |
- |
- |
EUROLAMEX 8.2 |
matt |
P2A |
- |
- |
EUROLAMEX 10.2 |
matt |
P2A |
- |
- |
EUROLAMEX 12.2 |
matt |
P2A |
- |
- |
Gallery

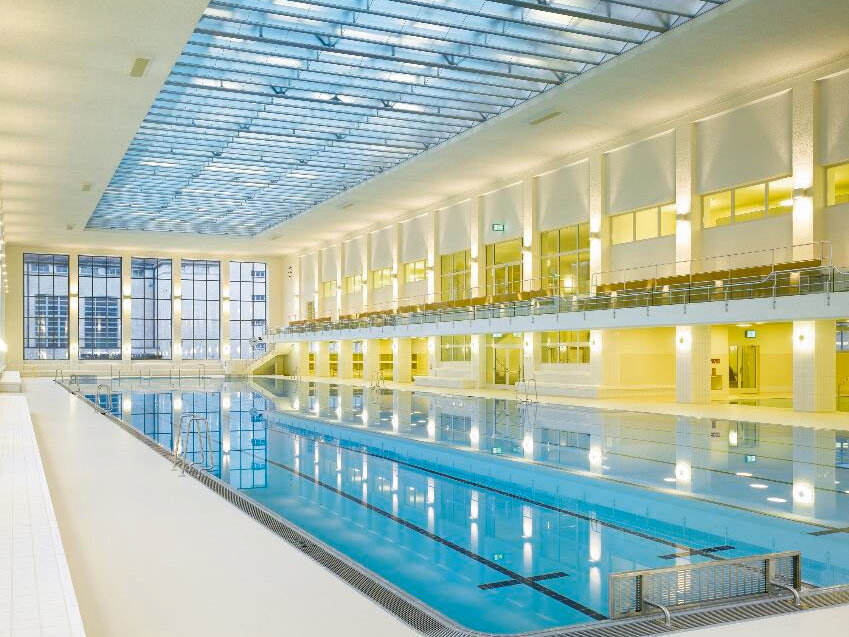

The laminated safety glass that brings peace and quiet
Sound-insulating windows and façades effectively reduce noise pollution inside buildings and help to ensure a pleasant, peaceful time indoors.
Through the use of asymmetrical structures and laminated safety glass (LSG) with sound insulation film, EUROLAMEX S PHON reduces sound in living and working spaces as required.
Applications Can be used as single glazing for internal spaces or as insulating glass
Dimensions Made-to-measure up to max. 9000x3210 mm; glass thickness from 3 to 12 mm
Special features Laminated safety glass with integrated sound insulation
Technical specifications
EUROLAMEX S PHON sound insulation film |
|
---|---|
Design |
Sound reduction index Rw |
6.2 |
35 dB |
8.2 |
37 dB |
10.1 |
38 dB |
10.2 |
38 dB |
12.2 |
40 dB |
16.2 |
41 dB |
20.2 |
42 dB |
The extra-white basic glass with a brilliant, neutral look
EUROWHITE is a highly transparent, extra-white float glass for varied use in architecture and glass design.
The glass loses its characteristic green tint (low-iron glass) through its manufacture with heavily reduced iron oxide content. The particularly colour-neutral EUROWHITE NG guarantees better light and energy transmission – for unadulterated efficiency and a neutral look.
Aesthetics Distortion-free view; homogeneous smooth surface; without a characteristic green tint
Dimensions Standard (strip size) 6000x3210 mm; excess length 9000x3210 mm; thickness from 2 to 12 mm
Special feature Light transmission value 90-91%; float is 100 % recyclable
Technical specifications
Thickness |
2 mm |
3 mm |
4 mm |
5 mm |
6 mm |
8 mm |
10 mm |
12 mm |
---|---|---|---|---|---|---|---|---|
Light transmission |
92% |
91% |
91% |
91% |
91% |
91% |
91% |
89% |
Exterior light reflection |
8% |
8% |
8% |
8% |
8% |
8% |
8% |
8% |
Solar energy transmission |
91% |
91% |
91% |
90% |
90% |
90% |
89% |
88% |
Solar energy reflection |
8% |
8% |
8% |
8% |
8% |
8% |
8% |
8% |
Energy absorption |
1% |
1% |
1% |
2% |
2% |
2% |
3% |
4% |
Ultraviolet light admittance |
87% |
86% |
85% |
83% |
82% |
80% |
78% |
76% |
Total energy transmission g-value |
91% |
91% |
91% |
91% |
91% |
90% |
90% |
89% |
Gallery
Video
The reflection-free laminated glass for art and product presentations
LUXAR CLASSIC is an anti-reflective, anti-glare white glass with a residual reflection of less than 1% and laminated with a special film for UV and splinter protection.
LUXAR CLASSIC is used to present exhibits in museums and exhibitions. It ensures an unadulterated colour experience and direct, reflection-free transparency. As a laminated glass, LUXAR CLASSIC also offers UV protection and resistance to mechanical attacks, with the splinter binding also minimising damage in the event of breakage.
Aesthetics Completely invisible; clear transparency
Functionality Minimum residual reflection of less than 1%; as laminated glass with UV protection from up to 99% as well as splinter protection
Usage For picture frame glazing and display case glass in museums and exhibitions
Gallery
The non-reflective glass for a clear view in windows and façades
Non-reflective glass LUXAR® allows a direct view of reality – whether at a shop counter, in front of the shop window, etc. The anti-reflective coating LUXAR® is characterised by a high level of durability and abrasion resistance and can be processed into both safety glass and insulating glass.
LUXAR® ensures an unadulterated colour experience and a reflection-free view up to a viewing angle of 45°. Coating with LUXAR® insulating glass adds a special touch: on the one hand, improved light transmission while on the other, improved U and g values in combination with SILVERSTAR thermal and solar protection coatings.
Aesthetics Almost invisible glass thanks to minimal reflection
Functionality Clear view; unadulterated color experience; improved light transmission
Usage Refined basic glass for processing into safety or insulating glass
Technical specifications
LUXAR® |
LUXAR® F |
|
Size |
1900x3210 mm |
9000x3210 mm |
Thickness |
2 – 12 mm |
4 - 15 mm |
One side coated |
Reflection: 4.5 % |
Reflection: 4.8 % |
Both sides coated |
Reflection: < 0.5 % |
LUXAR® F only one side coated available |
Laminated glass |
Reflection: < 0.5 % |
Reflection: 1.2 % |
Tempered/Heat strengthened glass |
possible |
possible |
Downloads
Gallery
The all-rounder with a striking external appearance
Our COMBI coatings ensure elements for pleasant room temperatures, plenty of daylight and minimal energy costs all year round. In winter, they ensure outstanding insulation due to their low U values, so heat is kept in the indoor space.
And the coating’s low g value protects the interior from overheating in the summer months. With light transmission values between 30 and 70 per cent, our range of five different COMBI coatings offers the perfect solution for every climate. The coating in a reflective BLUE colour creates a particularly striking, colourfully tinted external appearance.
We supply all strip sizes up to a size of 9000x3210 mm. Technical details on specific coatings can be found in the calculation tool glaCE.
Aesthetics Window and façade solutions with a striking, colourfully tinted external appearance
Function The ideal combination of winter thermal insulation and summer heat protection
Application Worldwide for all buildings with the highest requirements in terms of energy efficiency, indoor comfort and visual appearance
Technical specifications
Product |
Light transmission level (%) |
Degree of light reflection ext. (%) |
Colour rendering index |
Energy absorption (%) |
Solar Factor g EN (%) |
colour |
---|---|---|---|---|---|---|
SILVERSTAR COMBI BLUE 31/19 T |
31 |
11 |
87 |
63 |
19 |
blueish |
The all-rounder with an external appearance that shines
Our COMBI coatings ensure elements for pleasant room temperatures, plenty of daylight and minimal energy costs all year round. In winter, they ensure outstanding insulation due to their low U values, so heat is kept in the indoor space.
And the coating’s low g value protects the interior from overheating in the summer months. With light transmission values between 30 and 70 per cent, our range of five different COMBI coatings offers the perfect solution for every climate. The coating in a reflective BRONZE colour has a brilliant shine, creating a particularly luxurious look.
We supply all strip sizes up to a size of 9000x3210 mm. Technical details on specific coatings can be found in the calculation tool glaCE.
Aesthetics The bronze colour has a brilliant shine, creating a particularly luxurious look
Function The ideal combination of winter thermal insulation and summer heat protection
Application Worldwide for all buildings with the highest requirements in terms of energy efficiency, indoor comfort and visual appearance
Technical specifications
Product |
Light transmission (%) |
Degree of light reflection ext. (%) |
Colour rendering index |
Energy absorption (%) |
Solar Factor g EN (%) |
colour |
---|---|---|---|---|---|---|
SILVERSTAR COMBI BRONZE 40/21 T |
40 |
13 |
93 |
67 |
21 |
champagne |
The all-rounder with a subtle external appearance
Our COMBI coatings guarantee comfortable temperatures, plenty of natural light and low energy costs all year round. In winter, they ensure optimum insulation properties due to their low U values, so heat is kept in the indoor space.
And at the other end of the seasonal spectrum, the coating’s low g value protects the interior from overheating in the summer months. With light transmission values between 30 and 70 per cent, our range of five different COMBI coatings offers the perfect solution for every climate. This coating variant in a reflective GREY colour gives planners the option of designing window and façade solutions that have a subtle tint.
We supply all strip sizes up to a size of 9000x3210 mm. Technical details on specific coatings can be found in the calculation tool glaCE.
Aesthetics For window and façade solutions with a subtle tint
Function The ideal combination of winter thermal insulation and summer heat protection
Application Worldwide for all buildings with the highest requirements in terms of energy efficiency, indoor comfort and visual appearance
Technical specifications
Products |
Light transmission (%) |
Degree of light reflection ext. (%) |
Colour rendering index |
Energy absorption (%) |
Solar Factor g EN (%) |
colour |
---|---|---|---|---|---|---|
SILVERSTAR COMBI GREY 40/22 T |
40 |
10 |
89 |
59 |
22 |
neutral grey |
SILVERSTAR COMBI GREY 50/28 T |
50 |
13 |
90 |
45 |
28 |
neutral grey |
Downloads
Gallery
The all-rounder with a colour-neutral external appearance
Our COMBI coatings guarantee comfortable temperatures, plenty of natural light and low energy costs all year round. In winter, they ensure optimum insulation properties due to their low U values, so heat is kept in the indoor space.
And at the other end of the seasonal spectrum, the coating’s low g value protects the interior from overheating in the summer months. With light transmission values between 30 and 70 per cent, our range of five different COMBI coatings offers the perfect solution for every climate. The colour-neutral design enables planners to create particularly sleek, understated window and façade solutions.
We supply all strip sizes up to a size of 9000x3210 mm. Technical details on specific coatings can be found in the calculation tool glaCE.
Aesthetics Colour-neutral for sleek, understated window and façade solutions
Function The ideal combination of winter thermal insulation and summer heat protection
Application Worldwide for all buildings with the highest requirements in terms of energy efficiency, indoor comfort and visual appearance
Technical specifications
Products |
Light transmission (%) |
Degree of light reflection ext. (%) |
Colour rendering index |
Energy absorption (%) |
Solar Factor g EN (%) |
colour |
---|---|---|---|---|---|---|
SILVERSTAR COMBI NEUTRAL 40/21 T |
40 |
10 |
86 |
63 |
21 |
blue |
SILVERSTAR COMBI NEUTRAL 50 |
45 |
13 |
91 |
43 |
26 |
neutral blue |
SILVERSTAR COMBI NEUTRAL 50 T |
45 |
13 |
91 |
44 |
26 |
neutral blue |
SILVERSTAR COMBI NEUTRAL 51/28 T |
51 |
16 |
90 |
41 |
28 |
blue |
SILVERSTAR COMBI NEUTRAL 60 |
60 |
12 |
92 |
36 |
32 |
neutral blue |
SILVERSTAR COMBI NEUTRAL 60 T |
60 |
12 |
92 |
36 |
32 |
neutral blue |
SILVERSTAR COMBI NEUTRAL 61/32 T |
61 |
14 |
95 |
37 |
34 |
light blue |
SILVERSTAR COMBI NEUTRAL 70/35 T |
70 |
14 |
96 |
27 |
37 |
light blue |
SILVERSTAR COMBI NEUTRAL 70/35 NG |
70 |
14 |
94 |
30 |
35 |
light blue grey |
SILVERSTAR COMBI NEUTRAL 70/35 NG T |
70 |
14 |
93 |
32 |
35 |
light blue grey |
SILVERSTAR COMBI NEUTRAL 70/40 |
72 |
12 |
96 |
33 |
42 |
greenish |
SILVERSTAR SELEKT |
72 |
12 |
96 |
33 |
42 |
neutral |
SILVERSTAR SELEKT 70/37 |
70 |
13 |
96 |
30 |
37 |
blue |
SILVERSTAR SELEKT 70 |
70 |
13 |
95 |
29 |
37 |
neutral blue |
SILVERSTAR SELEKT 70 T |
70 |
14 |
95 |
27 |
37 |
neutral blue |
SILVERSTAR SELEKT 74/42 |
74 |
13 |
96 |
29 |
42 |
neutral |
SILVERSTAR SELEKT 74/42 T |
74 |
12 |
97 |
27 |
42 |
neutral |
Downloads
- Leaflet SILVERSTAR COMBI Neutral 30-21 T (3 MB, pdf)
- Leaflet SILVERSTAR COMBI Neutral 40/21 T Leaflet SILVERSTAR COMBI Neutral 40/21 T (3 MB, pdf)
- Leaflet SILVERSTAR COMBI Neutral 51-28 T (3 MB, pdf)
- Leaflet SILVERSTAR COMBI Neutral 61-32 T (3 MB, pdf)
- Leaflet SILVERSTAR COMBI Neutral 70-35 T (3 MB, pdf)
- Leaflet SILVERSTAR COMBI SELEKT 74-42 T (3 MB, pdf)
Gallery
The all-rounder with an elegant external appearance
Our COMBI coatings ensure pleasant room temperatures, plenty of daylight and low energy costs all year round. In winter, they ensure optimum insulation properties due to their low U values, so heat is kept in the indoor space.
And at the other end of the seasonal spectrum, the coating’s low g value protects from overheating in the summer months. With light transmission values between 30 and 70 per cent, our range of five different COMBI coatings offers the perfect solution for every climate. This variant in a reflective SILVER colour creates particularly elegant-looking window and façade solutions.
We supply all strip sizes up to a size of 9000x3210 mm. Technical details on specific coatings can be found in the calculation tool glaCE.
Aesthetics Reflective colour for particularly elegant-looking façade solutions
Function The ideal combination of winter thermal insulation and summer heat protection
Application Worldwide for all buildings with the highest requirements in terms of energy efficiency, indoor comfort and visual appearance
Technical specifications
Products |
Light transmission (%) |
Degree of light reflection ext. (%) |
Colour rendering index |
Energy absorption (%) |
Solar Factor g EN (%) |
colour |
---|---|---|---|---|---|---|
SILVERSTAR COMBI SILVER 32/21 T |
32 |
22 |
93 |
52 |
21 |
silver blue |
Gallery
Coating that prevents windows and shopfronts from fogging up
The outstanding thermal insulation properties of modern double-glazing mean that these windows can sometimes become fogged up on the outer pane.
The intelligent coating of SILVERSTAR FREE VISION changes the dew point of the glass’s surface and therefore its wetting behaviour: condensation is almost completely prevented from forming on the outer surface.
Aesthetics Unimpeded transparency in all weather conditions; non-tinted appearance
Function Prevents persistent fogging of outer pane
Usage Coating for use in double-glazing with an especially high Ug value
Downloads
Consistent sun protection with a striking external appearance
Our solar protection coatings help planners to meet the highest energy standards and acquire the relevant national and international certifications.
The glazing reflects the long-wave infrared rays – the biggest culprits when it comes to heating up internal spaces – thus creating energy-efficient buildings with a pleasingly low CO2 footprint that helps protect the environment. This coating variant in the reflective BLUE colour allows for particularly striking, colourfully tinted window and façade solutions.
We supply all strip sizes up to a size of 9000x3210 mm. Technical details on specific coatings can be found in the calculation tool glaCE.
Aesthetics Blue for striking, colourfully tinted façade solutions
Function Indoor rooms are protected against overheating thanks to particularly low g values (total energy transmission)
Application Especially suitable for hot climates or particularly large-scale glazing that is exposed to strong sunlight
Technical specifications
Products |
Light transmission (%) |
Degree of light reflection ext. (%) |
Colour rendering index |
Energy absorption (%) |
Solar Factor g EN (%) |
colour |
---|---|---|---|---|---|---|
SILVERSTAR SUNSTOP BLUE 20 T |
21 |
16 |
97 |
69 |
19 |
blue |
SILVERSTAR SUNSTOP BLUE 30 T |
27 |
28 |
93 |
58 |
23 |
silver blue |
SILVERSTAR SUNSTOP BLUE 50 T |
44 |
21 |
95 |
51 |
36 |
light blue |
Downloads
Gallery
Consistent sun protection with a colour-neutral external appearance
Our solar protection coatings help planners to meet the highest energy standards and acquire the relevant national and international certifications.
They reflect the long-wave infrared rays – the biggest culprits when it comes to heating up internal spaces – thus creating energy-efficient buildings with a pleasingly low CO2 footprint that helps protect the environment. This variant in a neutral reflective colour creates particularly understated window and façade solutions.
We supply all strip sizes up to a size of 9000x3210 mm. Technical details on specific coatings can be found in the calculation tool glaCE.
Aesthetics Neutral reflective colour for an understated tint
Function Indoor rooms are protected against overheating thanks to particularly low g values (total energy transmission)
Application Especially suitable for hot climates or particularly large-scale glazing that is exposed to strong sunlight
Technical specifications
Products |
Light transmission (%) |
Degree of light reflection ext. (%) |
Colour rendering index |
Energy absorption (%) |
Solar Factor g EN (%) |
colour |
---|---|---|---|---|---|---|
SILVERSTAR SUNSTOP NEUTRAL 50 T |
46 |
13 |
96 |
54 |
38 |
neutral grey |
SILVERSTAR SUNSTOP NEUTRAL 70 T |
63 |
19 |
98 |
31 |
50 |
neutral grey |
Downloads
Gallery
The glass for a non-reflective view
Thanks to minimal internal reflection, SILVERSTAR SUNSTOP Night Vision ensures a reflection-free view of the outside – particularly in the dark.
The insulating glass also offers a brilliant exterior view and all the advantages of an efficient solar protection glass.
Standard sizes are heat-treatable available from 9000x3210 mm.
Process Thanks to special coating, internal reflection is reduced to a minimum 4%
Function Non-reflecting view; very good summer heat protection during the day

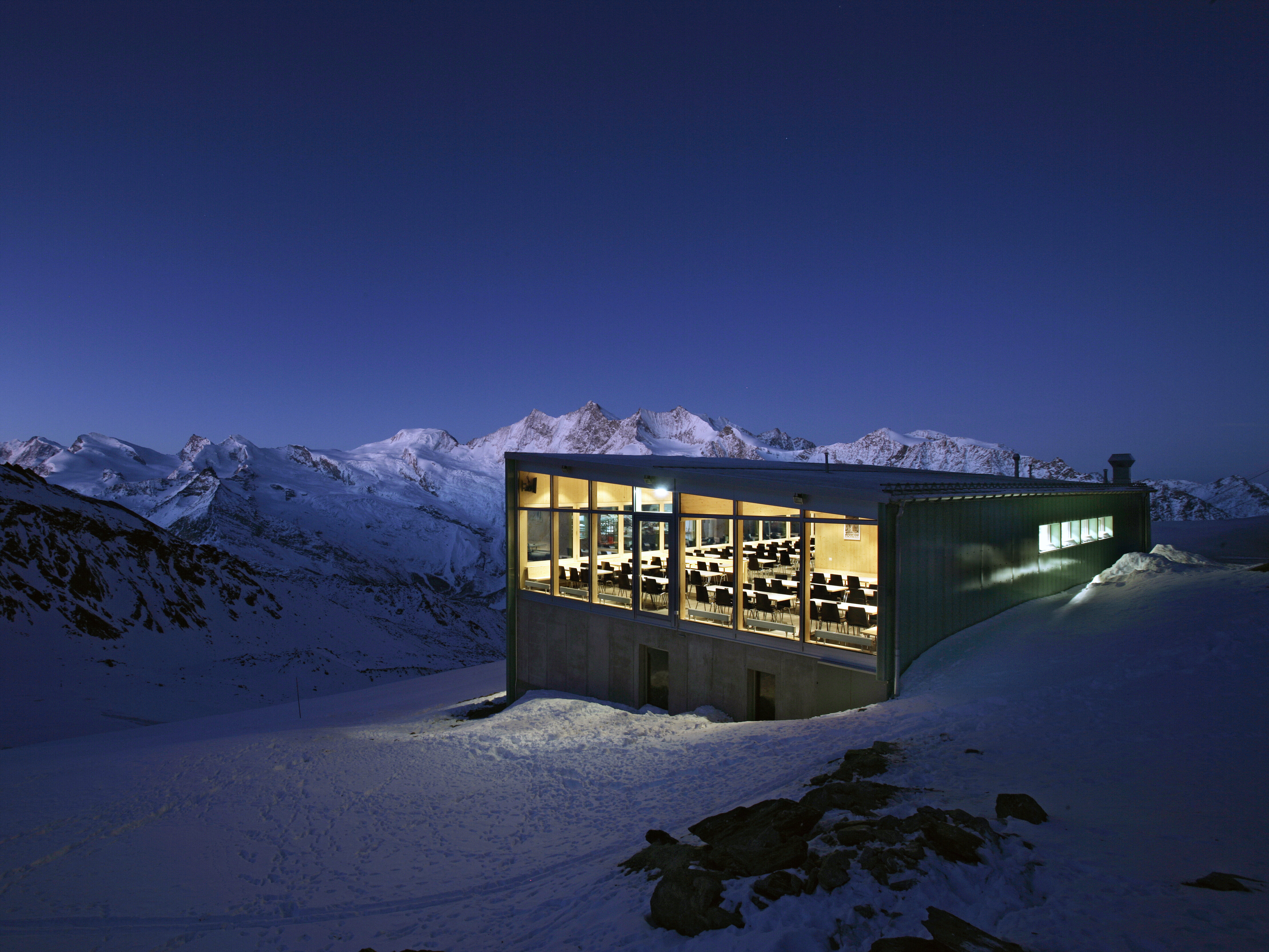

Usage For houses, hotels or restaurants with spectacular views
Technical specifications
Products |
Light transmission level (%) |
Degree of light reflection ext. (%) |
Degree of light reflection int. (%) |
Colour rendering index |
Energy absorption (%) |
Solar Factor g EN (%) |
colour |
---|---|---|---|---|---|---|---|
SILVERSTAR NIGHT VISION T |
32 |
35 |
7 |
94 |
51 |
26 |
silver blue |
Gallery
Consistent sun protection with an elegant external appearance
Our solar protection coatings help planners to meet the highest energy standards and acquire the relevant national and international certifications.
They reflect the long-wave infrared rays – biggest culprits when it comes to heating up internal spaces – thus creating sustainable buildings with a pleasingly low CO2 footprint that helps protect the environment. This coating in a reflective SILVER colour allows you to create particularly elegant-looking window and façade solutions.
We supply all strip sizes up to a size of 9000x3210 mm. Technical details on specific coatings can be found in the calculation tool glaCE.
Aesthetics The reflective silver colour creates elegant façade solutions
Function Indoor rooms are protected against overheating thanks to particularly low g values (total energy transmission)
Application Especially suitable for hot climates or particularly large-scale glazing that is exposed to strong sunlight
Technical specifications
Products |
Light transmission level (%) |
Degree of light reflection ext. (%) |
Colour rendering index |
Energy absorption (%) |
Solar Factor g EN (%) |
colour |
---|---|---|---|---|---|---|
SILVERSTAR SUNSTOP SILVER 10 T |
10 |
39 |
95 |
59 |
10 |
silver |
SILVERSTAR SUNSTOP SILVER 20 T |
18 |
28 |
94 |
63 |
17 |
silver |
SILVERSTAR WHITESHINE T |
59 |
35 |
99 |
21 |
49 |
silver white |
Downloads
Gallery
The solar protection glass with particularly high light transmission
SILVERSTAR SUPERSELEKT coatings combine optimum solar and thermal insulation with a particularly high level of transparency, which enables plenty of daylight to enter the room. With very low total energy transmission, selectivity characteristics of up to 2.5 can be achieved thanks to the triple silver coating.
With SILVERSTAR SUPERSELEKT 60/27, the value for the high light transmission is crucial; with SILVERSTAR SUPERSELEKT 35/14, the low total energy transmission (g value) is paramount. Both glass solutions are available tempered.
Our SUPERSELEKT coatings can be combined both with safety glass as well as with various other functions such as soundproofing and burglary protection. Available in bespoke dimensions up to a maximum of 9000x3210 mm. Specific coatings and the respective technical data can be calculated using our glaCE software.
Aesthetics Low external reflection; very colour-neutral look and transparency
Function Impressive light transmission thanks to selectivity >2; at the same time very effective heat protection and good thermal insulation
Application Worldwide for all buildings with the highest requirements in terms of solar protection, light transmission and and aesthetics
Technical specifications
Products |
Light transmission l(%) |
Degree of light reflection ext. (%) |
Colour rendering index |
Energy absorption (%) |
Solar Factor g EN (%) |
colour |
---|---|---|---|---|---|---|
SILVERSTAR SUPERSELEKT 35/14 T |
35 |
15 |
77 |
58 |
14 |
blue |
SILVERSTAR SUPERSELEKT 60/27 |
60 |
14 |
95 |
37 |
27 |
blue |
SILVERSTAR SUPERSELEKT 60/27 T |
60 |
16 |
94 |
35 |
27 |
blue |
Downloads
Gallery
The glass with particularly efficient thermal insulation
SILVERSTAR thermal insulation coatings offer all the requirements for climate-friendly construction. The innovative glazing ensures maximum thermal insulation, allows plenty of daylight into the building and enables passive use of solar energy. This increases the well-being inside and reduces heating costs at the same time.
In either a new building or a renovation: SILVERSTAR coatings support you in meeting the highest energy standards and acquiring appropriate national and international certifications. For sustainable buildings that exhibit an impressive low carbon footprint and protect the environment. Customised dimensions are possible up to a maximum of 9000x3210 mm. Technical details on specific coatings can be found in the calculation tool glaCE.
Aesthetics Neutral view and transparency, colour nuances on request
Function Wide range of possible Ug values up to a minimum of 0.5 W/m²K
Application In all temperate and particularly cold climates; including northern façades
Technical specifications
Products |
Light transmission (%) |
Degree of light reflection ext. (%) |
Colour rendering index |
Energy absorption (%) |
Solar Factor g EN (%) |
colour |
---|---|---|---|---|---|---|
SILVERSTAR EN2plus |
82 |
12 |
98 |
18 |
64 |
neutral |
SILVERSTAR EN2plus T |
82 |
12 |
98 |
17 |
65 |
neutral |
SILVERSTAR ZERO NG |
76 |
15 |
97 |
18 |
54 |
neutral |
SILVERSTAR ZERO NG T |
77 |
17 |
97 |
16 |
55 |
neutral |
SILVERSTAR TRIII E |
81 |
14 |
98 |
17 |
73 |
neutral |
Downloads
Gallery
Special glass with one way mirror effect
Protected from view, SPYMIRROR allows you to take on the role of an observer without being seen. This is made possible by a multilayer one way mirror coating.
SPYMIRROR is therefore preferentially used for observation purposes. In interior and exterior architecture SPYMIRROR can also be used to deliberately control viewing from inside as well as from outside. In order to achieve the desired effect, a difference in the illumination level is required.
SPYMIRROR is available in 3 visible light transmission options either in annealed or laminated versions in various thicknesses on clear float or low iron glass.
SPYMIRROR CHROME is a temperable version of the one way mirror and also comes in 3 visible light transmission options. It can also be used in annealed or laminated versions and is available in sizes up to 6000x3210 mm on clear float or low iron glass.
Usage As a separating element with observation and mirror effect
Functionality One-sided mirror effect due to anti-reflective coating
Special feature Available in a range of degrees of light transmittance from 1 to 20 per cent (30 and 40 per cent on request)
Technical specifications
Light transmission |
1% |
12% |
20% |
3% CHROME |
10% CHROME |
20% CHROME |
---|---|---|---|---|---|---|
Light reflection (uncoated side) |
43% |
34% |
24% |
50% |
39% |
27% |
Light reflection (coated side) |
52% |
46% |
35% |
59% |
42% |
29% |
UV transmission |
0% |
5% |
18% |
3% |
8% |
17% |
Reflection colour |
Neutral grey |
Neutral grey |
Neutral grey |
Neutral silver |
Neutral silver |
Neutral silver |
